ProductPhoto3
Weeder Module for Mower Robot


AI-WEEDER

Our AI-based solution provides chemical-free weed control for lawns in order to satisfy customers who are looking for environmentally friendly solutions to weeding, and anticipating the expected legal ban on chemical weedkillers.

The solution can be integrated into any conventional robotic lawnmower design.

Our technology enables robotic weed detection with AI and mechanical removal on lawns in home gardens and public areas, in green buildings, in sports fields like soccer grounds or golf courses, and in leisure facilities like hotels or resorts.


AI-WEEDER

Our AI-based solution provides chemical-free weed control for lawns in order to satisfy customers who are looking for environmentally friendly solutions to weeding, and anticipating the expected legal ban on chemical weedkillers.

The solution can be integrated into any conventional robotic lawnmower design.

Our technology enables robotic weed detection with AI and mechanical removal on lawns in home gardens and public areas, in green buildings, in sports fields like soccer grounds or golf courses, and in leisure facilities like hotels or resorts.

ProductPhoto3

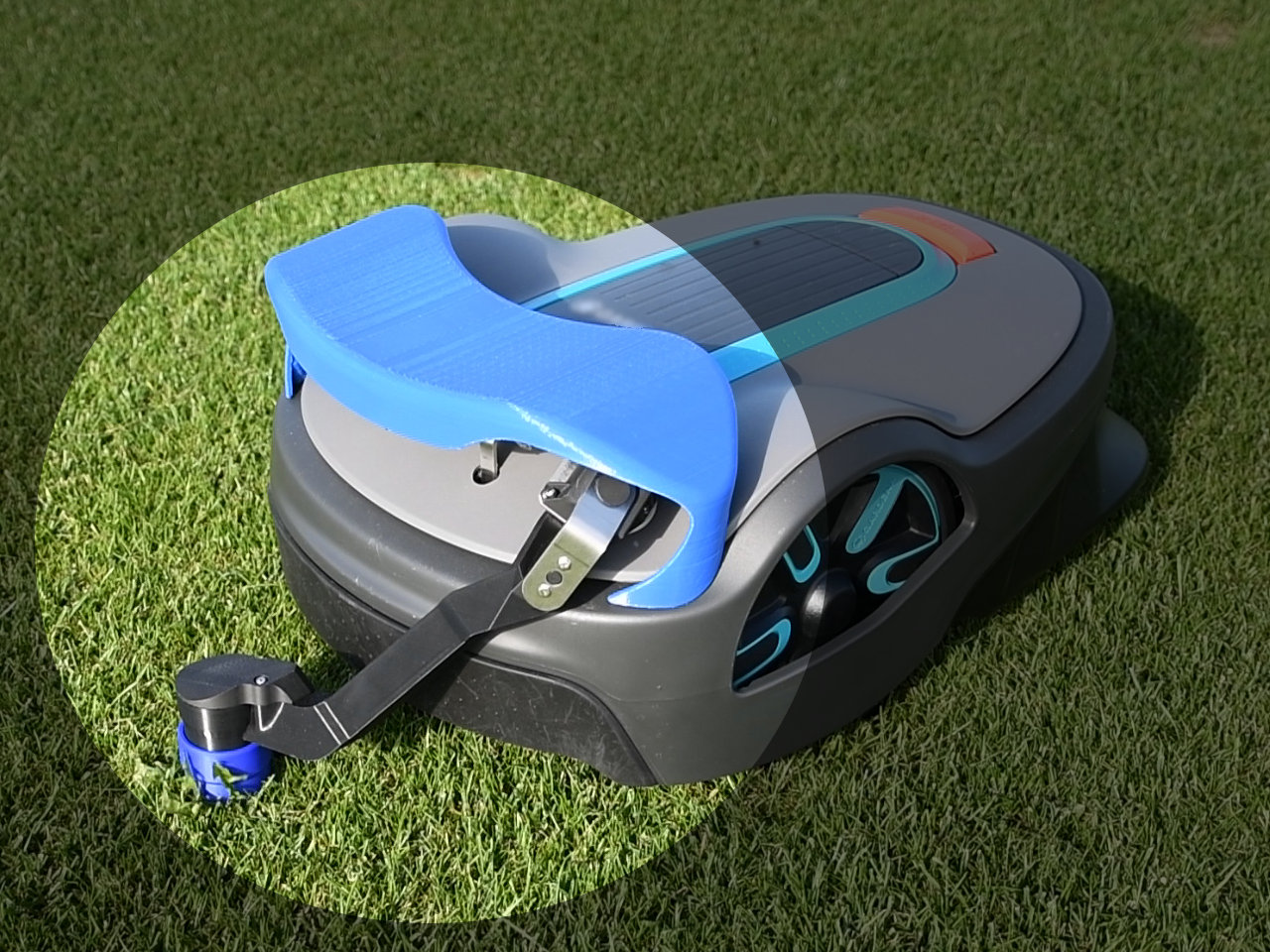

Weeder Module for Mower Robot


DIFFERENTIATORS

Our technology executes the robotic weeding of lawns using a single axis mechanical solution, integrated single-board electronics, and a resource-efficient inferencing algorithm implemented on a low-cost processor. Our patented technology can be easily added to conventional robotic mower designs. The neural network is trained on our unique weed in lawn database.

Innovations in the robotic lawn mower market comprise the use of GPS, wireless setups, and cameras for recognizing obstacles to redirect the robot. Our technology uses a camera for imaging, adds AI detection and a mechanically controlled component to eliminate weeds on lawns in different growth phases and lighting conditions.

ProductPhoto4

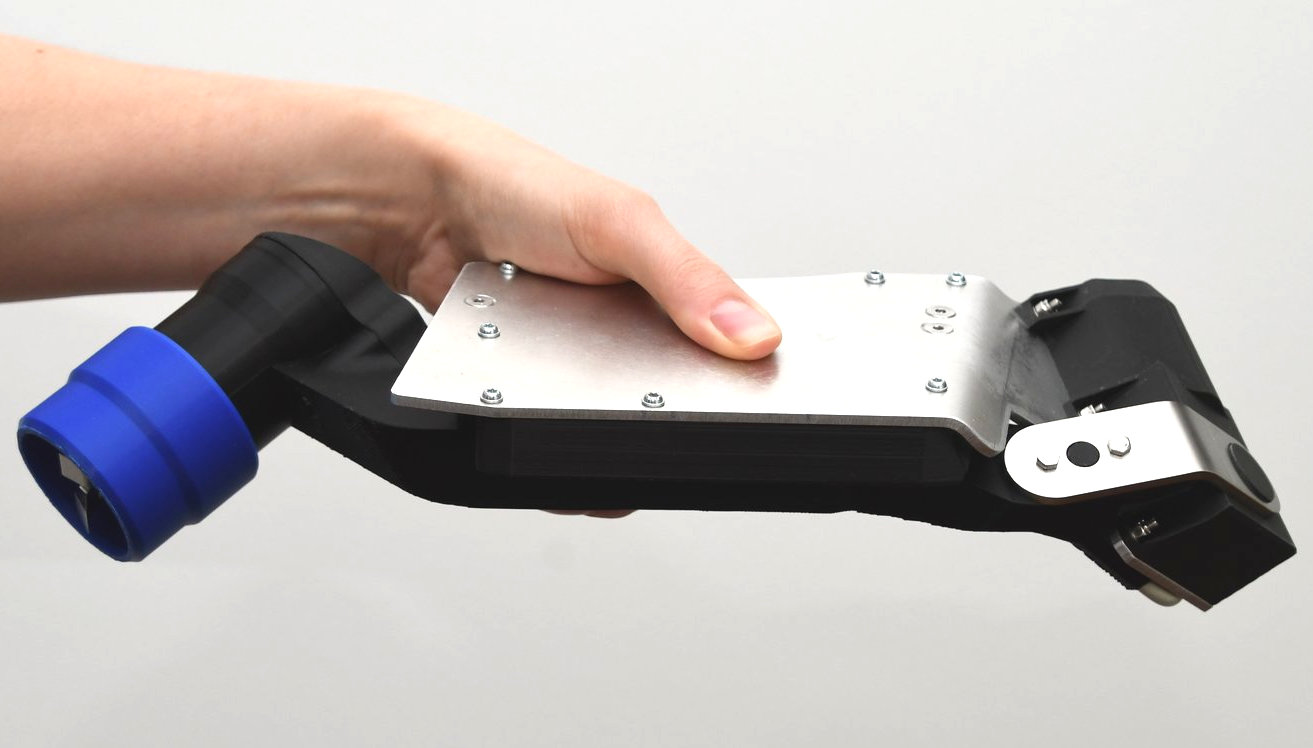

Integrated Module



HOW IT WORKS

Our patented technology uses a three-step working process:

  1. Continuously detects weeds using the front-facing camera in the course of mowing. When a weed is detected the mowing process temporarily stops to:
  2. Position the mower to place the weeder above the weed.
  3. Mechanically remove the weed and resumes mowing process.

Weed is cut off by a mechanical trimmer above the ground, stopping photosynthesis of the weed. After a few such operations on the same weed, the root does not sprout again and rots in the soil.

Early weed removal in the course of regular mowing prevents exponential reproduction so that only few removal processes are needed to keep the lawn weed-free permanently.


Three-step Working Process

Applications
Application Areas





Applications
Application Areas



TECHNICAL DATA

AI based Detection
Continuous weed detection during mowing
Vision System
Integrated camera and lighting
Electronics
Single-board electronics
Processor
Low-cost standard processor
Mechanical Components
Integrated retractable mechanical trimmer with single axis kinematics
Trimmer Diameter
34 mm
Rover Commanding
Halt, left-wheel-speed, right-wheel-speed, restart


TECHNICAL DATA

AI based Detection: Continuous weed detection during mowing

Vision System: Integrated camera and lighting

Electronics: Single-board electronics

Processor: Low-cost standard processor

Mechanical Components: Integrated retractable mechanical trimmer with single axis kinematics

Trimmer Diameter: 34 mm

Rover Commanding: Halt, left-wheel-speed, right-wheel-speed, restart








Gefördert durch Preseed - Deep Tech des BMDW bzw. des BMK abgewickelt durch die aws.
